Tried and proven millions of times

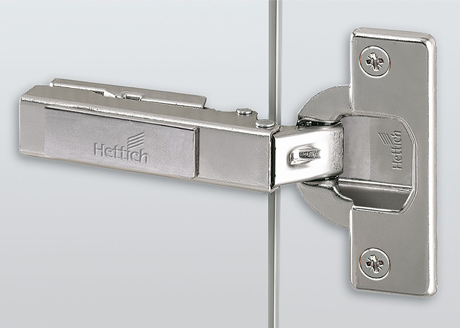

- Concealed hinge with snap-on assembly
- opening angle 110°
- full overlay, half overlay, inset
- Quality grades to EN 15570, Level 2
- For doors 15-25 mm thick
- Cup diameter 35 mm
- Cup depth 11.1 mm
- Integrated overlay adjustment + 2 mm / – 2 mm
- Integrated depth adjustment + 2.5 mm / – 1.5 mm
- Height adjustment at mounting plate
- Material of hinge arm: nickel-plated steel
- Material of hinge cup: nickel-plated steel
| Brand | Hettich |
